Made-to-order system
75 Series Aluminum Entrance Door
A robust hinged entrance-door concept with clean sightlines and project-selected glazing or infill panels.
Request technical quotation
Product overview
A configurable system, not a fixed off-the-shelf unit.
Actual product photos
View 75 Series Aluminum Entrance Door in real applications.
Supplier-provided product photographs illustrate appearance and applications. Click a photo to view it at a larger size.
View largerProduct demonstration
Factory-supplied reference image for 75 Series Aluminum Entrance Door.
View largerAlternative view
Additional factory-supplied image showing the actual product appearance.
Product demonstration
Factory-supplied actual product photo. Final configuration is confirmed for each project.

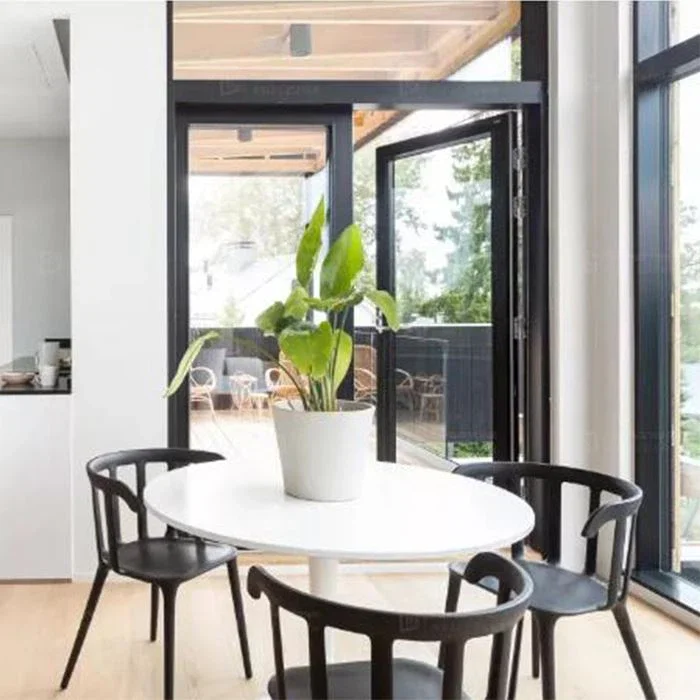

Alternative view
Factory-supplied actual product photo. Final configuration is confirmed for each project.
Technical specification
Available materials and component options.
The table combines published supplier references with items to specify for your project. It is not a standard bill of materials. Final thickness, glass build-up and hardware are confirmed in the quotation and approved drawings.
| System / Series | 75 Series with 75mm profile depth |
|---|---|
| Frame Material | 6063-T5 aluminum alloy or system-specified equivalent; confirm with quotation |
| Profile / Panel Thickness | 1.6mm to 2.0mm High-strength aluminium |
| Opening Method | Single or double hinged |
| Glass Options | Single, insulated, laminated, tempered and Low-E glazing options; build-up confirmed per project |
| Hardware Options | Hardware brand and operating set are proposed for the selected system; confirm the brand, model and load capacity in the quotation. |
| Handle & Lock | Lever, lockable or project-selected handle set |
| Surface Finish | Luxury Matte Black powder coating |
| Colour Options | Standard or custom RAL colour; single- or dual-colour subject to system |
| Seals & Drainage | EPDM seals and project-specific drainage arrangement |
| Screen Options | Sliding or retractable insect screen available for compatible door systems |
| Size Range | Made to opening schedule; maximum sash/panel size confirmed by glass weight, hardware capacity and engineering review |
| Typical Application | Residential entrances and light-commercial access |
| Custom Scope | Panel style, glass, threshold, lockset and colour |
* Exact series, wall thickness, glass build-up and hardware brand are confirmed in the quotation and shop drawings before production.
Component selection
Specify the details that affect appearance and performance.
Frame & profile
Choose the system series, thermal-break requirement, profile wall thickness, frame colour and interior/exterior colour combination.
Glazing build-up
Confirm single or insulated glass, tempered or laminated safety treatment, Low-E coating, tint, spacer width and decorative requirements.
Hardware & handle
Select the operating hardware, handle style, locking points, restrictors, rollers, hinges or closer according to the opening method.
Seals, screens & drainage
Coordinate EPDM seals, drainage, threshold, insect screen, flashing interfaces and installation accessories with the project detail.
Information required
What we need for an accurate quotation.
A product name alone is not enough. Send the project information below so the factory can configure and price the complete unit.
- Width × height, quantity and opening direction for every unit
- Project country, city, building type and installation level
- Required profile series or performance target, if specified
- Glass build-up, frame colour, hardware brand and screen requirement
- Drawings, window schedule and target shipment date
Get a configuration-based quotation.
Send the schedule and required options. We will return the proposed system, component specification and commercial quotation.
