Vertical Sliding Windows
A vertically moving sash arrangement for projects that need ventilation without an outward-opening panel.
Request technical quotation
Product overview
A configurable system, not a fixed off-the-shelf unit.
Actual product photos
View Vertical Sliding Windows in real applications.
These are factory-supplied product demonstration images. Click any photo to inspect it at a larger size.
View larger ↗Product demonstration
Factory-supplied reference image for Vertical Sliding Windows.

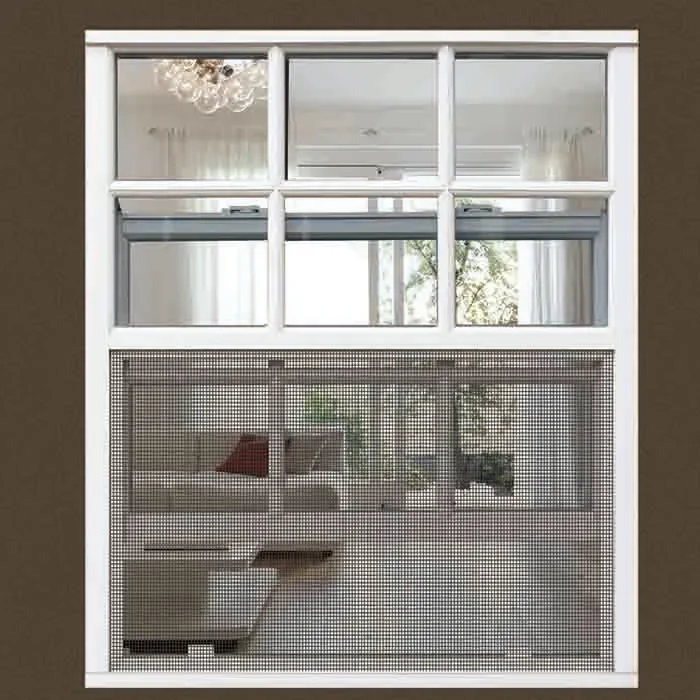

View larger ↗Alternative view
Additional factory-supplied image showing the product appearance and panel composition.

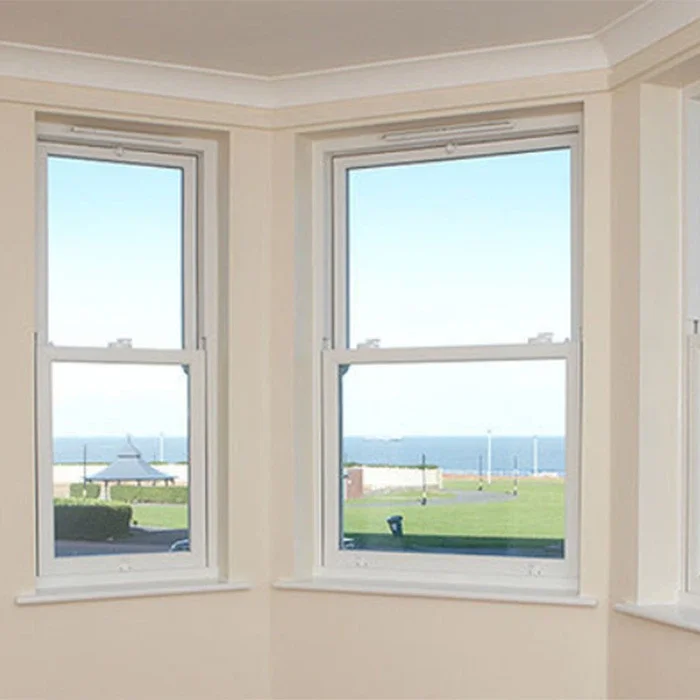

View larger ↗Application example
Reference appearance only; final size, panel layout, glass and finish are confirmed for the project.
Alternative view
Additional factory-supplied image showing the product appearance and panel composition.
Application example
Reference appearance only; final size, panel layout, glass and finish are confirmed for the project.
Technical specification
Available materials and component options.
The table combines published supplier references with items to specify for your project. It is not a standard bill of materials. Final thickness, glass build-up and hardware are confirmed in the quotation and approved drawings.
| System / Series | 80 series vertical sliding system |
|---|---|
| Frame Material | 6063-T5 aluminum alloy or system-specified equivalent; confirm with quotation |
| Profile / Panel Thickness | 1.2mm to 2.0mm customized |
| Opening Method | Vertical sliding |
| Glass Options | Single / Double (5+12A+5) / Laminated / Tinted |
| Hardware Options | Hardware brand and operating set are proposed for the selected system; confirm the brand, model and load capacity in the quotation. |
| Handle & Lock | Recessed pull, D-pull or lockable handle options |
| Surface Finish | Powder coating, anodizing, electrophoresis or wood-grain finish as applicable |
| Colour Options | Standard or custom RAL colour; single- or dual-colour subject to system |
| Seals & Drainage | EPDM seals and project-specific drainage arrangement |
| Screen Options | Fixed, sliding, retractable or integrated insect screen where compatible |
| Size Range | Made to opening schedule; maximum sash/panel size confirmed by glass weight, hardware capacity and engineering review |
| Typical Application | Traditional facades, compact rooms and renovation work |
| Custom Scope | Sash arrangement, balance hardware, glazing and finish |
* Exact series, wall thickness, glass build-up and hardware brand are confirmed in the quotation and shop drawings before production.
Component selection
Specify the details that affect appearance and performance.
Frame & profile
Choose the system series, thermal-break requirement, profile wall thickness, frame colour and interior/exterior colour combination.
Glazing build-up
Confirm single or insulated glass, tempered or laminated safety treatment, Low-E coating, tint, spacer width and decorative requirements.
Hardware & handle
Select the operating hardware, handle style, locking points, restrictors, rollers, hinges or closer according to the opening method.
Seals, screens & drainage
Coordinate EPDM seals, drainage, threshold, insect screen, flashing interfaces and installation accessories with the project detail.
Information required
What we need for an accurate quotation.
A product name alone is not enough. Send the project information below so the factory can configure and price the complete unit.
- Width × height, quantity and opening direction for every unit
- Project country, city, building type and installation level
- Required profile series or performance target, if specified
- Glass build-up, frame colour, hardware brand and screen requirement
- Drawings, window schedule and target shipment date
Get a configuration-based quotation.
Send the schedule and required options. We will return the proposed system, component specification and commercial quotation.
